What Are the Specifications of Solar Road Studs?

2024-10-25

0 views times

Share us:

Solar road studs, as the name suggests, are road studs that use solar energy as energy. Solar powered road studs are widely used as the infrastructure for modern road traffic safety. They convert solar energy into electrical energy to provide clear road guidance for drivers at night or in weather conditions with poor visibility. Solar road studs are different. According to different classification standards, we can classify solar road studs into different types.

Classification by color of solar road studs

White solar road studs: usually installed in the middle of the road to separate lanes or used as indicators on both sides of the lane to ensure that the lanes are clearly visible.

Yellow solar road studs: commonly used in the central dividing line of the road or the dividing mark of the two-way lane to help drivers identify the lanes at night or on foggy days.

Red solar road studs: usually used on the reverse side of the lane to remind drivers to avoid reverse driving.

Blue solar road studs: mainly used for special area identification, such as fire passages, water resource protection areas, etc.

Green solar road studs: used to mark some parking areas, rest areas, or specific area guidance.

Classification by the installation method of solar road studs

Embedded solar road studs: mainly used in the center line of the road, because the solar powered road studs in the center line have particularly high requirements for pressure resistance. After being buried in the ground, the part exposed above the ground is usually only a few millimeters to reduce damage to the road surface while ensuring compression resistance.

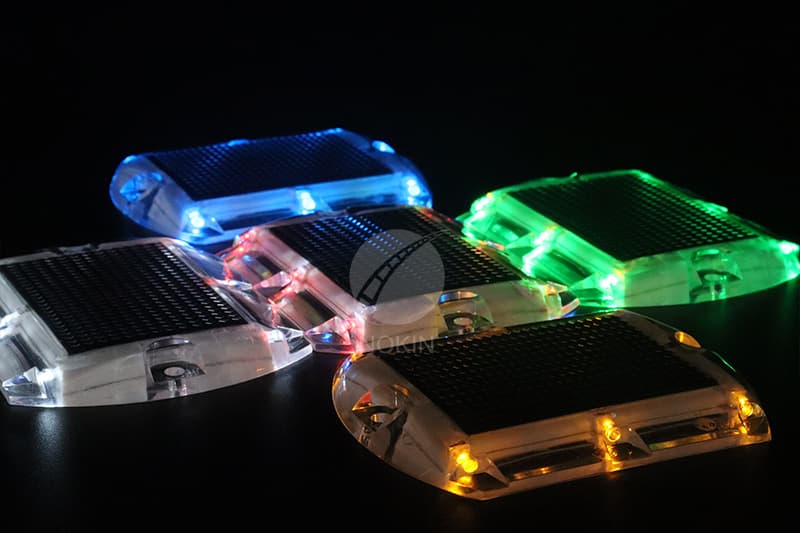

Raised solar road studs: Usually used on the edge of the road, the requirements for compression resistance are relatively low. They protrude from the ground, making it easy for vehicle drivers and pedestrians to identify them while working effectively.

Classification by the light-emitting mode of solar road studs

Continuous-light solar road studs: This type of solar led road studs will continue to emit light at night or when the light is weak. It is suitable for continuous lighting of the road and increases the visibility of the road outline.

Flashing solar road studs: The solar led road studs emit light in a timed flashing mode. They are generally used in dangerous sections, bends, intersections, and other places that require special reminders, which can more effectively attract the attention of drivers.

Classification by the material of solar road studs

Cast aluminum solar road studs: The shell of this type of road stud is made of aluminum alloy, which has strong compression resistance and weather resistance. It is suitable for high-pressure environments, such as highways and roads with heavy vehicles.

Plastic solar road studs: Made of high-strength plastic, they are light in weight and suitable for low-pressure environments, such as parking lots and pedestrian paths.

Fiberglass solar road studs: This type of solar led road stud is made of fiberglass-reinforced plastic, has excellent corrosion resistance, and is suitable for some special corrosive environments.

The above are four common classification standards for solar powered road reflectors. You may have also seen solar road studs classified according to different standards, such as application scenarios and energy storage methods. These classifications are mainly to give you a clear distinction about solar powered road reflectors and help you choose the right solar road stud products.

If you have any questions about which solar road stud to choose, you can contact us. We are very willing to customize a solution for you and look forward to cooperating with you.
