In order to effectively curb the driver in some important pedestrian crossing place lack of adequate vigilance can lead to safety accidents, also reminds drivers to improve the awareness of safety, civilization, and comity to create a safe and friendly traffic environment. The intelligent zebra crossing technology with led solar road studs are applied in the section where pedestrians cross the street frequently.
Intelligent zebra crossing technology uses a series of led solar road studs, intelligent equipment, and traffic signal light linkage device to warn passing vehicles to give way to pedestrians, so as to ensure the safety of pedestrians crossing the street.
According to the above layout ideas, experts determined the intelligent zebra crossing and led solar road studs system architecture. The project plans to arrange a set of the intelligent zebra crossing and led solar road studs at the designated intersection to ensure smooth traffic and the safety of pedestrians and vehicles at the intersection.

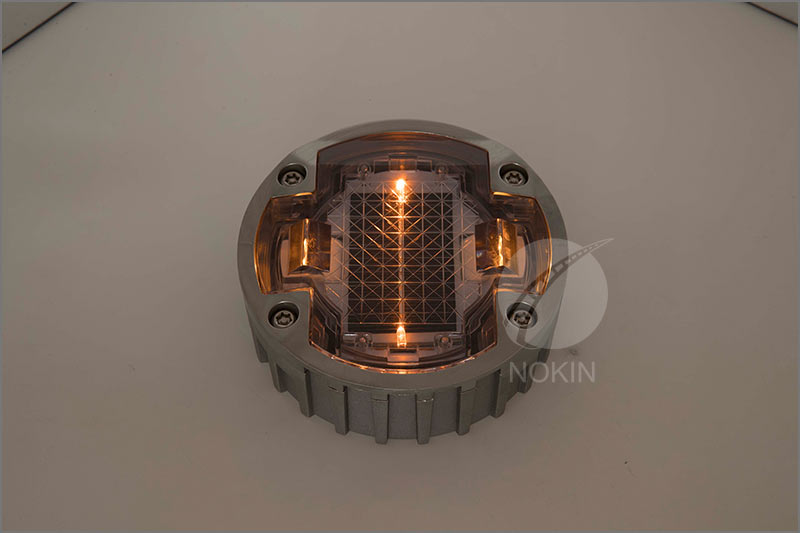

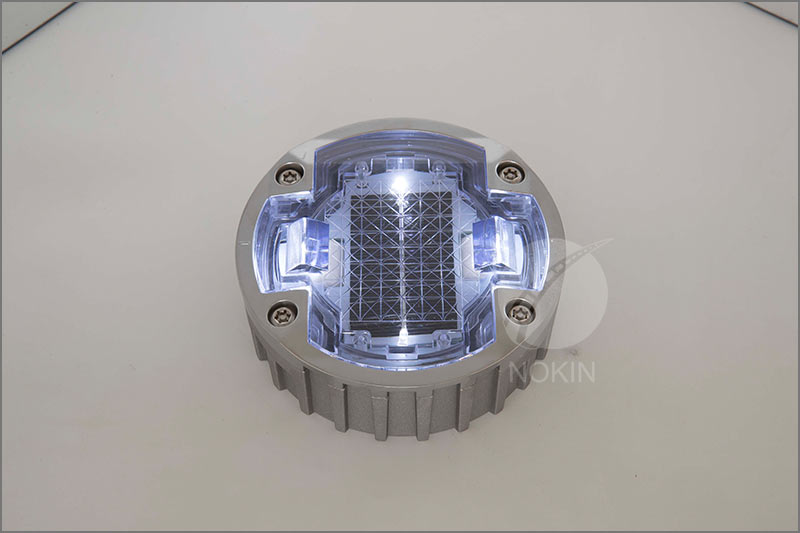

LED solar road studs provide clear and visible traffic guidance in all weather conditions! Fog and heavy rain – wet roads which creates a reflection of city and vehicles lights and makes current lane lines almost invisible! Greatly improve road safety.
NOKIN is the solar road studs manufacturer since 2001, Since the development of NOKIN, NOKIN has more than 12 different solar road studs and has also developed a smart pedestrian crossing system. You are welcome to contact us for more solar road studs information.
Body material: Aluminum(GB-ADC12)+PC(Japan Brand)
Power supply: USA Brand High Efficient Solar Panel
Battery: NI-MH1.2V/600MAH; Lithium battery3.2V/500MAH(Made in Japan);
Resistance: >30T
LED Color: White, Yellow, Blue, Red, Green
Size: L125mm*W107mm*H26+50mm
Body material: Casting Aluminium alloy +PC
Power supply: 5V/80MAH Mono crystalline silicon
Battery: Lithium battery3.2V/1000MAH
Resistance: >40T(can be installed in the middle of road)
LED Color: White, Yellow, Blue, Red, Green
Size: φ125*50mm
Body material: PC
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NIMH 600MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: φ117*23mm
Body material: PC
Power supply: High efficient solar panel(5V/60mA)
Battery: Lithium battery(3.2V/500mAh)
Resistance: 15T
LED Color: White, Yellow, Blue, Red, Green
Size: 114*90*11mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH or lithium battery
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L104*W104*H20mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH1.2V/800MAH
Resistance: >20 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: L123*W133*H22mm+55mm
Body material: Aluminum Alloy+PC cover
Power supply: Solar panel(Monocrystalline 2.5V /120MA)
Battery: Lithium battery 1000MAH*3.2V
Resistance: >30 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: Ф123*45mm
Body material: Cast Aluminum
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >30 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: Ф120*50mm（bottom）
Ф135*50mm（upper）
Body material: Heavy duty casting aluminium
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L129*W114*H23mm+53mm
Body material: Aluminum+PC
Power supply: Mono crystalline solar panel
Battery: NI-MH 1.2V/ 600mah(high temperature resistance);
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: 125*43*30mm
Body material: Tempered Glass/PC
Power supply: USA Brand High Efficient Solar Panel
Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH1.2V/600MAH(high temperature resistance, made in China)
Lithum battery3.2V/500MAH(made in Japan)
Resistance: >20T
LED Color: White, Yellow, Blue, Red, Green
Size: φ112*56mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L104mm*W94mm*H20mm
