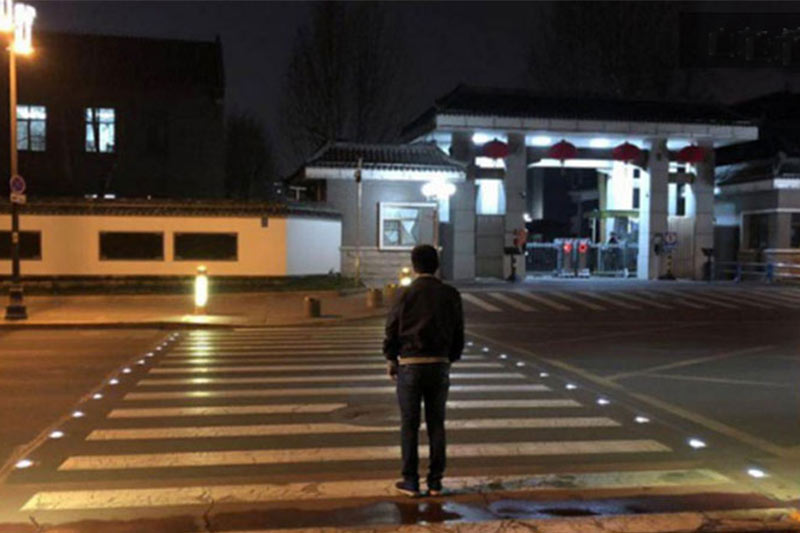

At present, most zebra crossings are in the form of crossing lines, and the intelligent zebra crossing with solar road studs does not need to be crossed, so future maintenance and maintenance will be more convenient. The intelligent zebra crossing is linked with the signal light. When the pedestrian signal light is red, the solar road stud light can flash in milliseconds. When the pedestrian signal turns green, the red light on the vehicle side and white light on the pedestrian side is displayed.
At present, the traffic police detachment of Sanya Public Security Bureau has set up the multi intelligent zebra crossing system at the intersection of linchunling park on Fenghuang road and the intersection of Hedong Central Primary School on Hedong road. The system consists of a pedestrian detector, intelligent controller, crosswalk warning light, and flashing warning solar road stud.
The local traffic police said that there were many traffic accidents in the urban-rural fringe because of the difficulty in getting electricity and the lack of signal lights. In Songbei District of Harbin, on average, there is a traffic accident every day.
According to the actual situation, a safety warning system for sharp curves and steep slopes is also used to warn pedestrians when driving on the curve, because some cars often drive out without paying attention to the accident.
When pedestrians cross the road and pass the detector, the sensor device will be triggered. The solar road stud lights arranged on the zebra crossing will flash yellow and white lights to prompt the vehicle to slow down and comity, so as to reduce the occurrence of traffic accidents. In addition to the simple warning function, solar road stud lights can also assist to realize the warning and control of driving distance.
Body material: Aluminum(GB-ADC12)+PC(Japan Brand)
Power supply: USA Brand High Efficient Solar Panel
Battery: NI-MH1.2V/600MAH; Lithium battery3.2V/500MAH(Made in Japan);
Resistance: >30T
LED Color: White, Yellow, Blue, Red, Green
Size: L125mm*W107mm*H26+50mm
Body material: Casting Aluminium alloy +PC
Power supply: 5V/80MAH Mono crystalline silicon
Battery: Lithium battery3.2V/1000MAH
Resistance: >40T(can be installed in the middle of road)
LED Color: White, Yellow, Blue, Red, Green
Size: φ125*50mm
Body material: PC
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NIMH 600MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: φ117*23mm
Body material: PC
Power supply: High efficient solar panel(5V/60mA)
Battery: Lithium battery(3.2V/500mAh)
Resistance: 15T
LED Color: White, Yellow, Blue, Red, Green
Size: 114*90*11mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH or lithium battery
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L104*W104*H20mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH1.2V/800MAH
Resistance: >20 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: L123*W133*H22mm+55mm
Body material: Aluminum Alloy+PC cover
Power supply: Solar panel(Monocrystalline 2.5V /120MA)
Battery: Lithium battery 1000MAH*3.2V
Resistance: >30 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: Ф123*45mm
Body material: Cast Aluminum
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >30 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: Ф120*50mm（bottom）
Ф135*50mm（upper）
Body material: Heavy duty casting aluminium
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L129*W114*H23mm+53mm
Body material: Aluminum+PC
Power supply: Mono crystalline solar panel
Battery: NI-MH 1.2V/ 600mah(high temperature resistance);
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: 125*43*30mm
Body material: Tempered Glass/PC
Power supply: USA Brand High Efficient Solar Panel
Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH1.2V/600MAH(high temperature resistance, made in China)
Lithum battery3.2V/500MAH(made in Japan)
Resistance: >20T
LED Color: White, Yellow, Blue, Red, Green
Size: φ112*56mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L104mm*W94mm*H20mm
