Smart Pedestrian Crossing Solar Road Stud Light In China

2020-05-26

0 views times

Share us:

“Pedestrian crossing smart road studs” belong to a part of the intelligent pedestrian crossing system. Some places are also called “smart zebra crossings”. “Diversified zebra crossings” are all designed to solve the problem of pedestrians and vehicles on the zebra crossing.

In China,the earliest attempt to do this technology was the Yichang traffic police. They combined the thermal imaging detection technology with the ground solar road studs light. When no pedestrians pass through, the two rows of solar stud light will not react. Drive at a normal speed and smoothly, but once the probe detects a pedestrian on the road, the smart solar road studs on one side will automatically start flashing, just like they are greeting you. Vehicles that were originally going to pass will slow down and even stop to give way to pedestrians under the prompt of solar road studs.

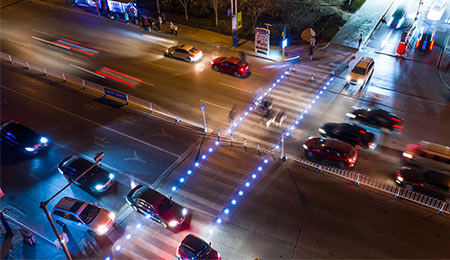

Smart Pedestrian Crossing Solar Road Stud In China

The Shenzhen traffic police first used the “wireless synchronous embedded solar road stud”, which has the following advantages:

(1) The construction is convenient and does not require pavement grooving. Only need to drill a few holes. The least damage to the asphalt layer of the pavement.

(2) The product realizes wireless control synchronous flashing, does not need to be connected to each other and control by control box, which is a “fool” working mode.

However, another problem was encountered during implementation, the solar road stud light brightness was not enough! It turns out that the street lights in the city are too bright, and NOKIN has been exporting solar stud lights. The solar road stud lights have been widely used in Russia and Europe, and they have not encountered the problem of “unlit” by customers, because all European cities are not as bright as the streets of Chinese cities.

Then use the power supply of embedded solar road studs. The advantage of this product is that it uses 220 V AC power supply, the working current of LED can be adjusted up, and the brightness of the solar stud light is guaranteed. The disadvantage is that the groove must be cut, the project is complicated, and the cost is high. After installation, the night effect of the product won praise from Shenzhen Traffic Police. Now, Shenzhen residents can cross the road more safely.
