Solar road stud has many advantages, compared with other road safety facilities. This determines of solar road stud light is more suitable for dangerous road sections with potential safety hazards and complex road sections that are difficult to lay circuits, which is the focus of highway safety protection work. Therefore, solar road studs are more and more used. There are many roads in East China, South China, and Sichuan using solar road studs, which has achieved good results.
In order to ensure service time of solar road stud from the basic level, the solar road stud light must have a particularly good compression performance. If the solar road stud can not bear certain pressure, it is easy to rot after the car is rolled or impacted, or the electronic part inside is affected and can not work normally, then the solar road stud is not practical.
At present, the technical requirement of the Ministry of communications for solar road stud light is 10t, and the solar road stud produced by Nokin can reach the loading capacity of 30t. Nokin can improve the compressive performance of solar road stud in the following ways:
First, the solid material is used to fill the interior of the solar road stud, and the PC bulletproof material is used for the exposed solar panel to enhance the compression resistance of the electronic part;
Second, reduce the height of the solar road stud to reduce the pressure on the electronic part as much as possible;
Thirdly, the solar road stud produced by Nokin can only be put into production and use after many anti-impact and anti-rolling tests. It effectively ensures the quality and anti Strike ability of the solar road stud light.

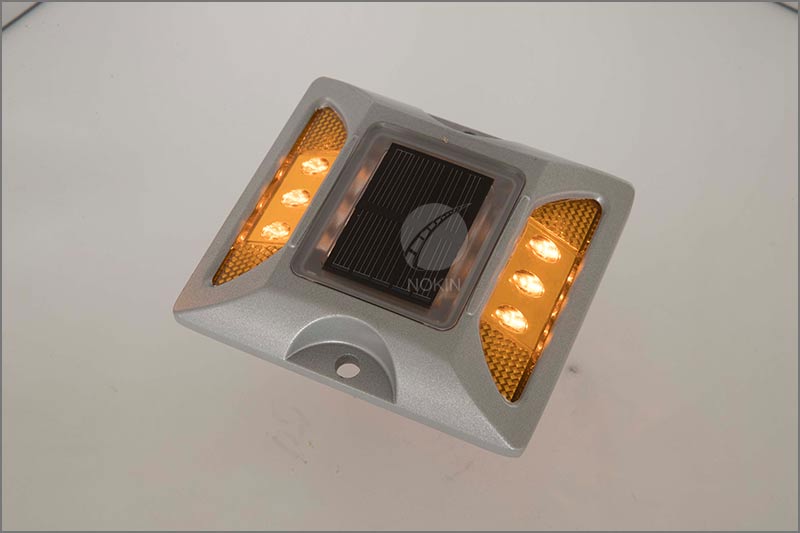

Body material: Aluminum(GB-ADC12)+PC(Japan Brand)
Power supply: USA Brand High Efficient Solar Panel
Battery: NI-MH1.2V/600MAH; Lithium battery3.2V/500MAH(Made in Japan);
Resistance: >30T
LED Color: White, Yellow, Blue, Red, Green
Size: L125mm*W107mm*H26+50mm
Body material: Casting Aluminium alloy +PC
Power supply: 5V/80MAH Mono crystalline silicon
Battery: Lithium battery3.2V/1000MAH
Resistance: >40T(can be installed in the middle of road)
LED Color: White, Yellow, Blue, Red, Green
Size: φ125*50mm
Body material: PC
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NIMH 600MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: φ117*23mm
Body material: PC
Power supply: High efficient solar panel(5V/60mA)
Battery: Lithium battery(3.2V/500mAh)
Resistance: 15T
LED Color: White, Yellow, Blue, Red, Green
Size: 114*90*11mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH or lithium battery
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L104*W104*H20mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH1.2V/800MAH
Resistance: >20 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: L123*W133*H22mm+55mm
Body material: Aluminum Alloy+PC cover
Power supply: Solar panel(Monocrystalline 2.5V /120MA)
Battery: Lithium battery 1000MAH*3.2V
Resistance: >30 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: Ф123*45mm
Body material: Cast Aluminum
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >30 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: Ф120*50mm（bottom）
Ф135*50mm（upper）
Body material: Heavy duty casting aluminium
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L129*W114*H23mm+53mm
Body material: Aluminum+PC
Power supply: Mono crystalline solar panel
Battery: NI-MH 1.2V/ 600mah(high temperature resistance);
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: 125*43*30mm
Body material: Tempered Glass/PC
Power supply: USA Brand High Efficient Solar Panel
Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH1.2V/600MAH(high temperature resistance, made in China)
Lithum battery3.2V/500MAH(made in Japan)
Resistance: >20T
LED Color: White, Yellow, Blue, Red, Green
Size: φ112*56mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L104mm*W94mm*H20mm
