Install Solar Road Studs on Continuous Curved Road Sections

2024-11-07
0 views times

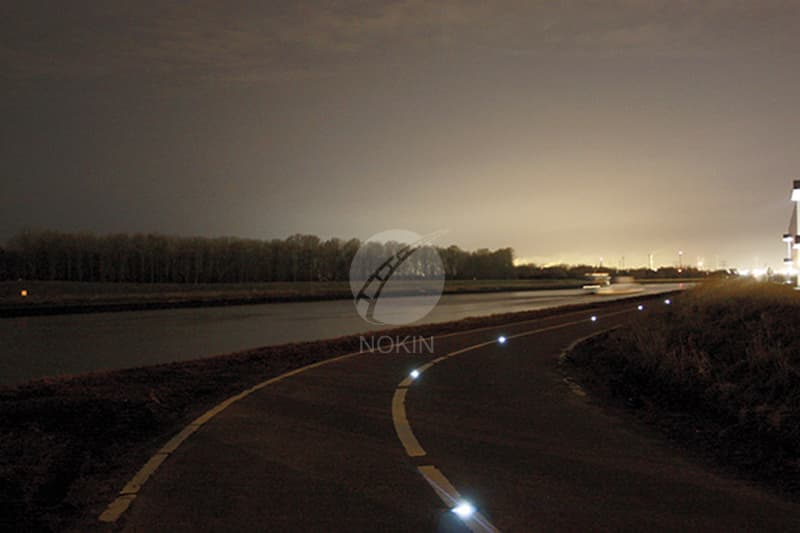

For some dangerous sections of road without light sources, installing solar road studs is a very effective road safety solution. Solar road studs combine solar technology and LED lights to emit bright light at night or in other low-light conditions, allowing drivers to identify lanes and road edges, stay in the right lane, and ensure their driving safety. Driving on a winding mountain road at night, the continuous curves make drivers feel uneasy, but the bright light emitted by solar powered road studs helps them always drive on the right road and drive safely through thrilling curves. Do you know what to pay attention to when installing solar road studs on such roads with continuous curves?
solar led road studs
solar led road studs

1. Location of installing solar road studs

Evenly arrange solar road studs on the outside and inside of the curve, and arrange them along the curve of the road to clarify the direction and boundaries of the curve. If it is a two-way lane, a row of solar powered road reflectors can be set at the center line of the lane to avoid vehicles crossing the line and prevent head-on collisions. The interval between solar powered road studs is generally 5 to 10 meters, depending on the radius and slope of the curve. Too large a spacing may affect the prompt effect, while too small a spacing may cause unnecessary light pollution.

2. Setting the light source of solar road studs

When installing solar road studs on mountain roads with continuous curves, it is generally recommended to set the light source of the road studs to high-brightness flashing mode so that the solar powered road reflectors can form a continuous visual guide in the curve section to remind drivers to slow down. In addition, the color of solar powered road studs can generally be white or yellow to ensure that drivers driving at night can quickly identify the driving path. Of course, if you wish, you can also set different colors according to the driving direction to enhance the warning effect, provided that the regulations allow.
solar road stud for sale

3. Intelligent sensing function of solar road studs

Nowadays, solar led road studs generally have built-in light sensors that are turned off during the day and automatically turned on at night or when there is insufficient light, greatly improving the efficiency of energy utilization and avoiding waste. Some more advanced solar road studs are also equipped with a vehicle sensing function. When a vehicle is detected approaching, it will automatically start flashing to enhance the reminder. This flashing function is particularly useful on roads with continuous curves.

4. Installation and maintenance of solar road studs

Before installing solar led road studs, the road surface needs to be cleaned to ensure that the bottom of the road stud fits tightly with the road surface to prevent loosening. You can choose embedded installation (suitable for asphalt and concrete roads) or adhesive installation according to the road material to increase firmness. Due to the particularity of the mountain road environment, it is recommended to choose high-strength, compression-resistant, and corrosion-resistant solar road studs to ensure that they can withstand various weather conditions and vehicle crushing. The protection level also needs to be selected at a higher level, such as solar led road studs above IP68. During use, regularly check the battery life and LED working status of the road studs to ensure the continuous brightness and use effect of the road studs.
solar road stud for sale
Installing solar powered road reflectors on continuous curved road sections can not only provide clear visual guidance at night but also enhance the driver’s recognition of curves under low visibility conditions such as rain and fog, reducing the risk of accidents caused by poor visibility on curves. Solar road studs can enhance the driving experience, make drivers feel safer and more capable of driving at night, and can provide additional reaction time to respond to the ever-changing road layout, greatly improving the safety of driving on continuous curved road sections and reducing the occurrence of accidents.
