In recent years, in the national highway safety project, a variety of high-tech traffic safety facilities and products are favored by the industry. The wide application of these traffic safety facilities and products has played an important role in improving road traffic safety and reducing traffic accidents.
In all kinds of traffic safety facilities or products, solar road studs can clearly draw out the road contour and edge in rainy, foggy weather and road bends, solar road studs guide the driver’s line of sight, and then eliminate the hidden danger of road safety, which has been widely concerned in the industry.
According to the different installation positions, solar road stud can be divided into two types: embedded solar road stud and raised solar road stud. Because of the high requirements of the compressive performance of the solar road studs installed in the road centerline, the embedded solar road stud is generally used in the middle line of the road, and the raised solar road stud is mostly used in the edge line of the road.

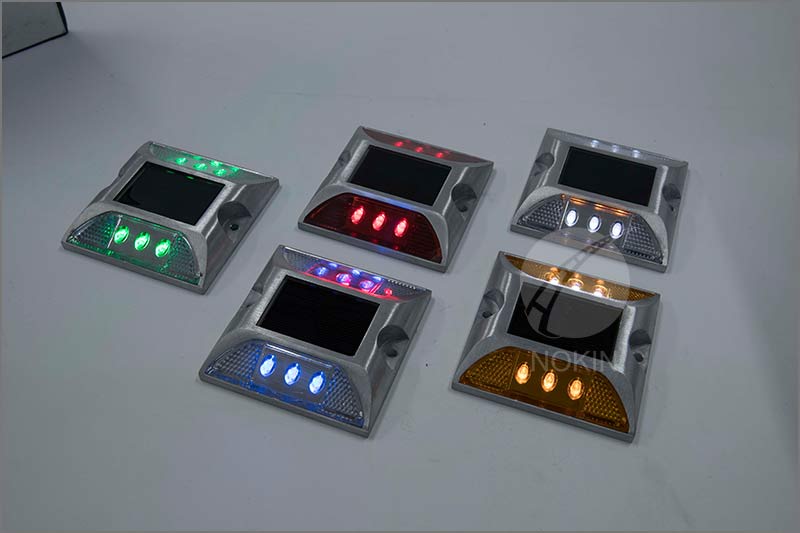

The embedded solar road stud has great damage to the road surface, and the cost of capacitive solar road stud is too high. Therefore, at present, the most widely used solar road stud in the industry is raised solar road studs with lithium batteries.
There are various forms of solar road stud, and the installation position is also different. No matter what kind of solar road stud is, its basic characteristics should be considered from the following aspects: sealing, compression resistance, visibility, etc.
Body material: Aluminum(GB-ADC12)+PC(Japan Brand)
Power supply: USA Brand High Efficient Solar Panel
Battery: NI-MH1.2V/600MAH; Lithium battery3.2V/500MAH(Made in Japan);
Resistance: >30T
LED Color: White, Yellow, Blue, Red, Green
Size: L125mm*W107mm*H26+50mm
Body material: Casting Aluminium alloy +PC
Power supply: 5V/80MAH Mono crystalline silicon
Battery: Lithium battery3.2V/1000MAH
Resistance: >40T(can be installed in the middle of road)
LED Color: White, Yellow, Blue, Red, Green
Size: φ125*50mm
Body material: PC
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NIMH 600MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: φ117*23mm
Body material: PC
Power supply: High efficient solar panel(5V/60mA)
Battery: Lithium battery(3.2V/500mAh)
Resistance: 15T
LED Color: White, Yellow, Blue, Red, Green
Size: 114*90*11mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH or lithium battery
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L104*W104*H20mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH1.2V/800MAH
Resistance: >20 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: L123*W133*H22mm+55mm
Body material: Aluminum Alloy+PC cover
Power supply: Solar panel(Monocrystalline 2.5V /120MA)
Battery: Lithium battery 1000MAH*3.2V
Resistance: >30 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: Ф123*45mm
Body material: Cast Aluminum
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >30 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: Ф120*50mm（bottom）
Ф135*50mm（upper）
Body material: Heavy duty casting aluminium
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L129*W114*H23mm+53mm
Body material: Aluminum+PC
Power supply: Mono crystalline solar panel
Battery: NI-MH 1.2V/ 600mah(high temperature resistance);
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: 125*43*30mm
Body material: Tempered Glass/PC
Power supply: USA Brand High Efficient Solar Panel
Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH1.2V/600MAH(high temperature resistance, made in China)
Lithum battery3.2V/500MAH(made in Japan)
Resistance: >20T
LED Color: White, Yellow, Blue, Red, Green
Size: φ112*56mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L104mm*W94mm*H20mm
